Building an Entegra Coach

Following the Construction of a 2016 Cornerstone from Start to Finish
Article Date: January, 2016


/articlepics/74_CS45A_build_image-73.jpg

Slideouts and Basement Accessories

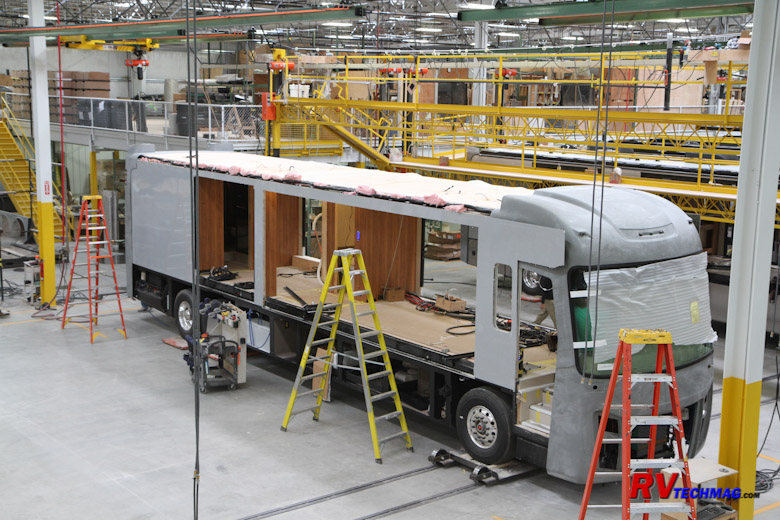

Meanwhile, while all of this was going on, the slideouts were being built in a separate area.

/articlepics/74_CS45A_build_image-81.jpg

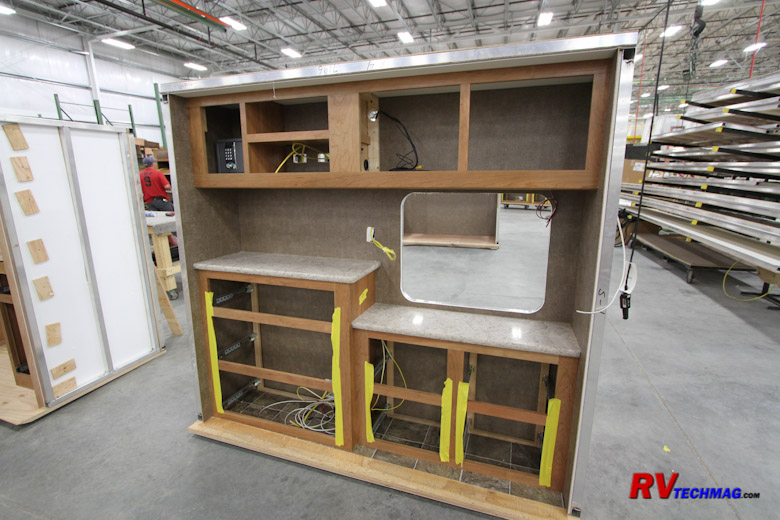

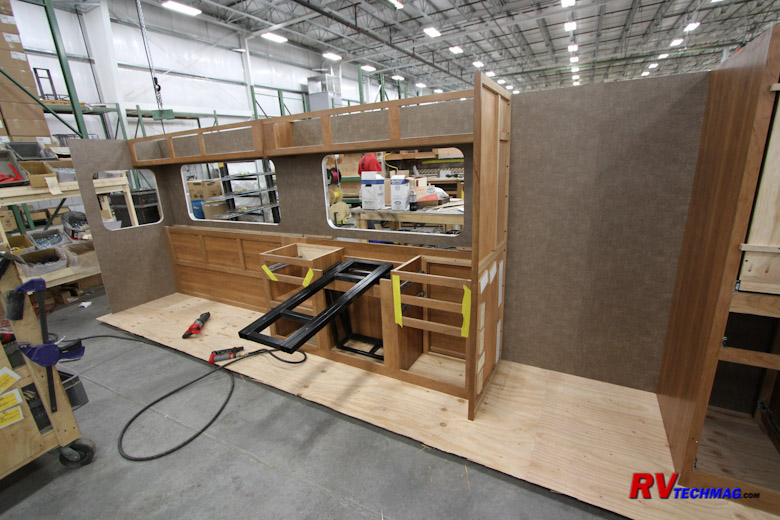

We saw earlier that the exterior slideout walls were removed from the coach and sent to the slideout construction area for further work. Each panel is then fastened to a pair of sides and a floor. The interior of the walls is fitted with plywood and wall coverings are installed. Any cabinetry now begins to be installed at this time.

/articlepics/74_CS45A_build_image-82.jpg

/articlepics/74_CS45A_build_image-80.jpg

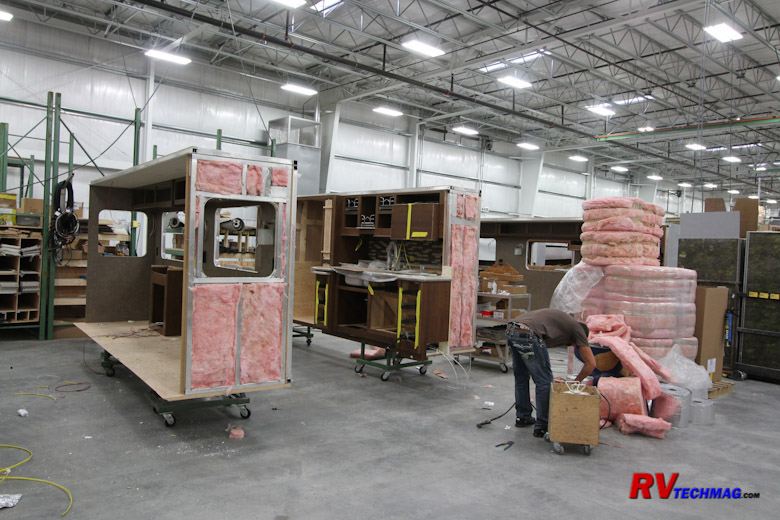

While the cabinetry is installed all of the electrical wiring is also run. Once the interior of the slideouts is complete, fiberglass insulation is applied over the outside of the interior panel, which is already covered with Flex Foil. The completed slideouts are then placed on carts, ready to be installed into the coach at the appropriate time.

/articlepics/74_CS45A_build_image-83.jpg

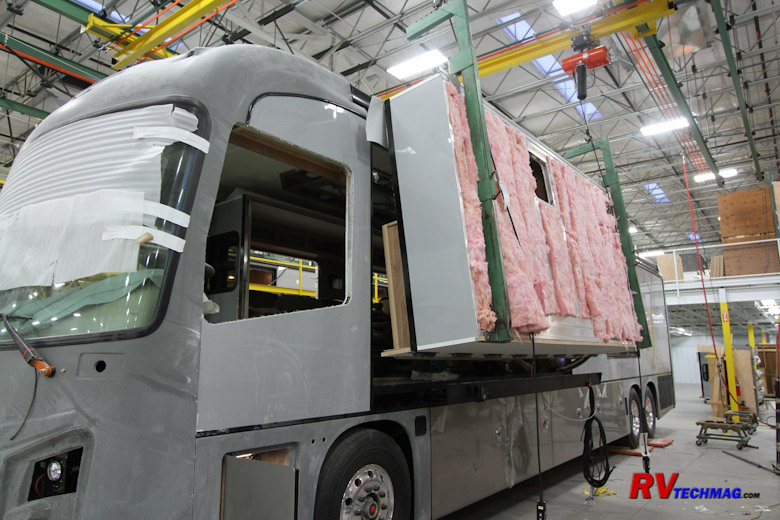

The completed slideout is then mounted to a carrier and hoisted into the coach where it is attached to the heavy duty rack and pinion slide rail mechanisms. The various electrical connections are them made between the main coach and the slideout.

/articlepics/74_CS45A_build_image-85.jpg

/articlepics/74_CS45A_build_image-86.jpg

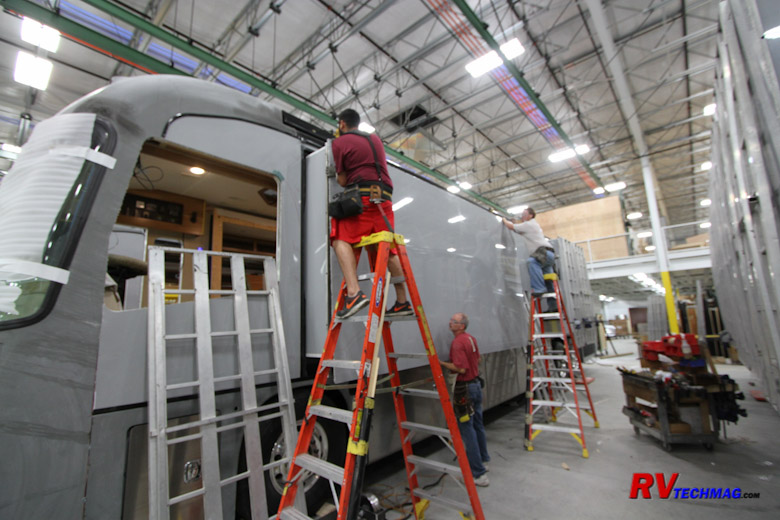

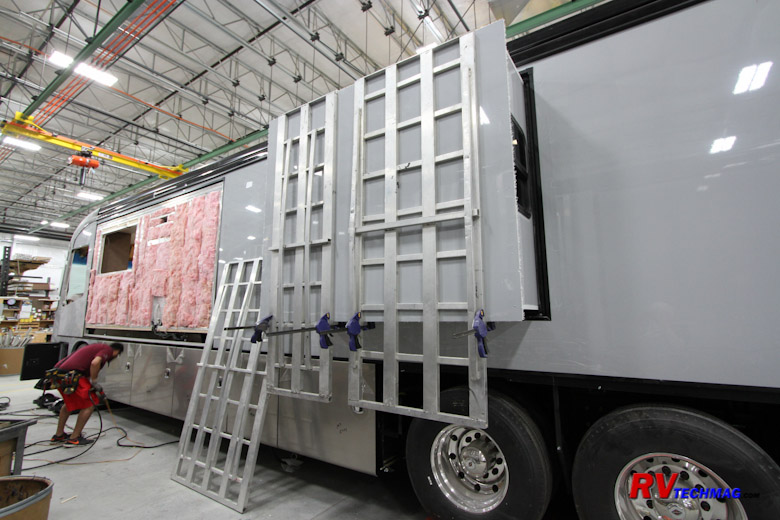

Once the slideouts are installed, the fiberglass panels previously cut out of the large sidewall sheet are attached to the slideouts. Adhesive is applied and clamps are installed to hold the panels tight while the adhesive sets.

/articlepics/74_CS45A_build_image-87.jpg

/articlepics/74_CS45A_build_image-89.jpg

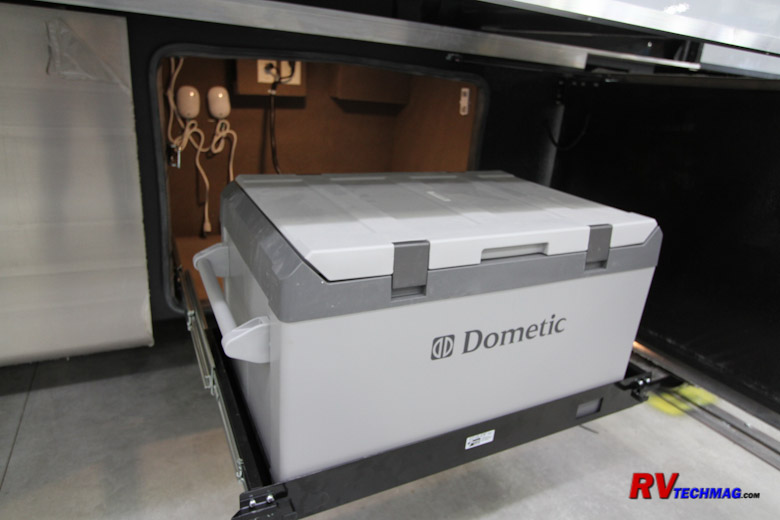

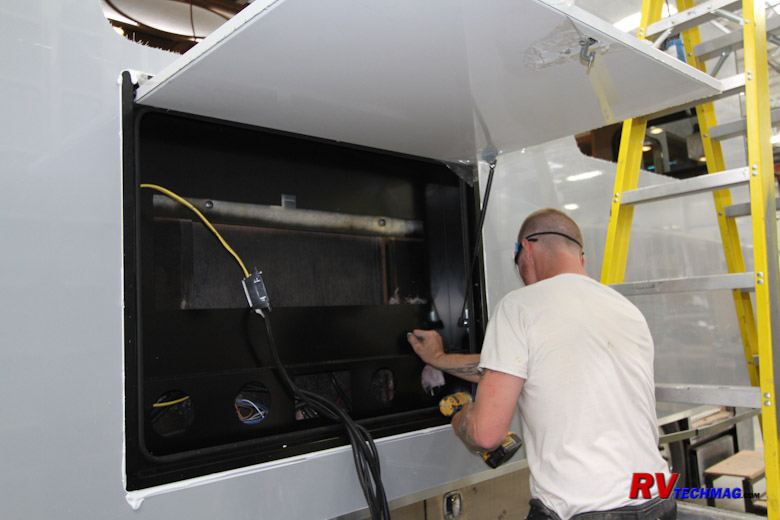

The exterior entertainment system is installed into the main patio side slideout. The 40" LED TV and all related connections are installed. The optional freezer and slide tray are also installed.

/articlepics/74_CS45A_build_image-90.jpg

/articlepics/74_CS45A_build_image-91.jpg

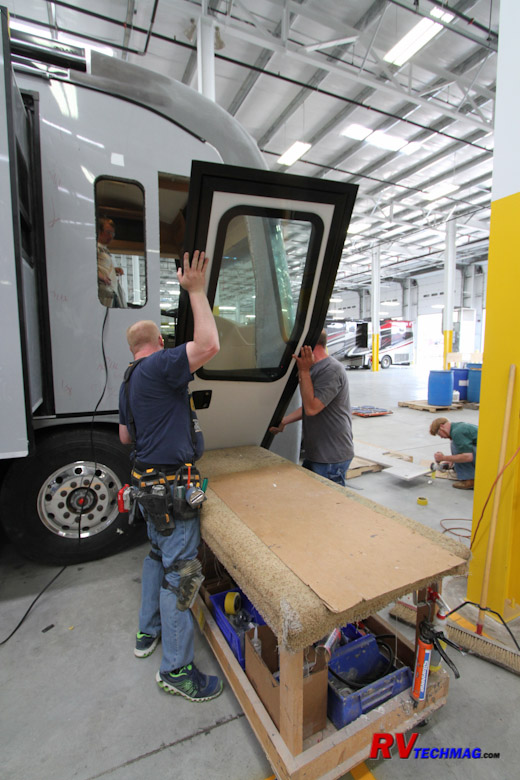

The rest of the basement cargo bay doors and the power lift engine access cover are installed. The entry door is also installed and electrical connections completed.

/articlepics/74_CS45A_build_image-93.jpg

/articlepics/74_CS45A_build_image-99.jpg

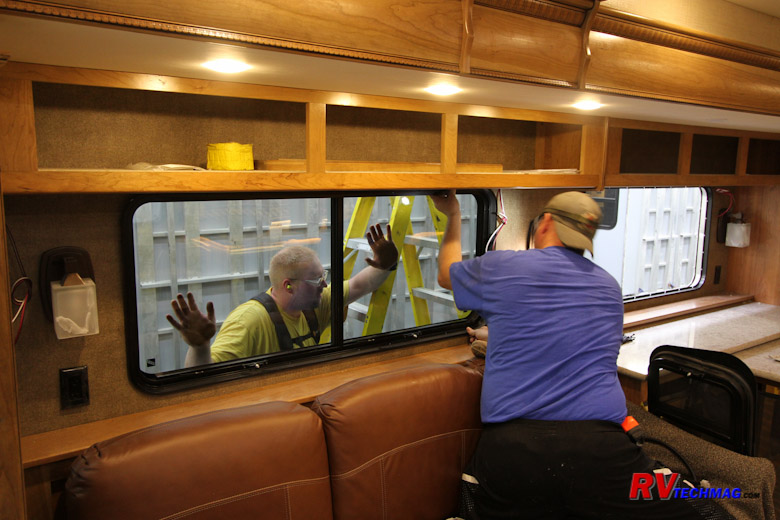

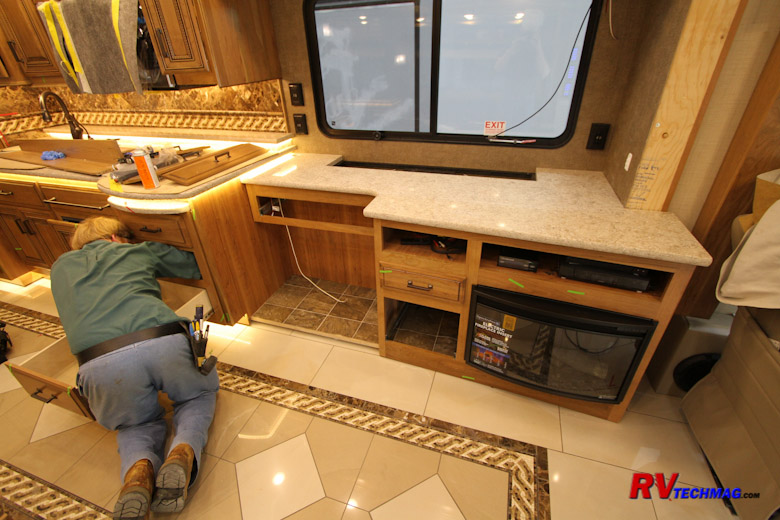

Windows are now installed into the coach sidewalls. Final wiring and plumbing connections are made in the interior at the same time.

/articlepics/74_CS45A_build_image-95.jpg

/articlepics/74_CS45A_build_image-94.jpg

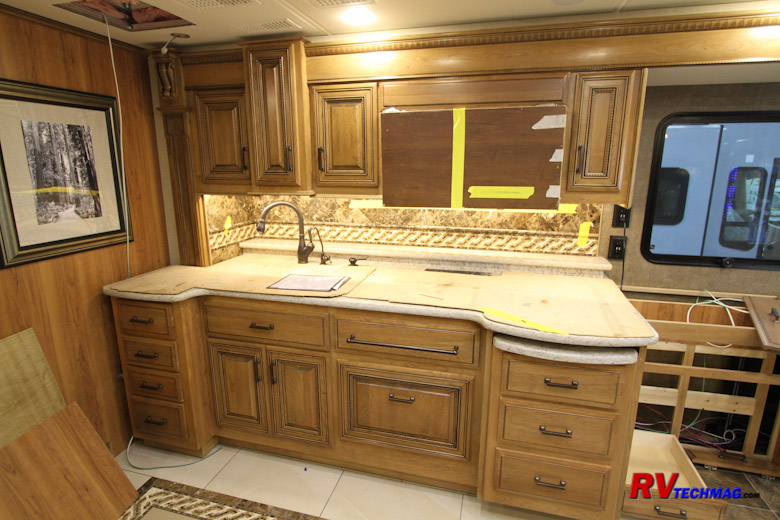

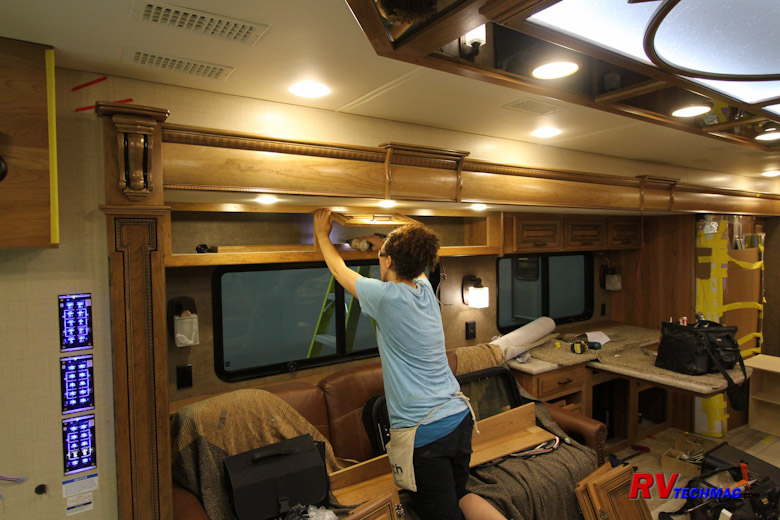

Once the cabinets and appliances have been installed a cart full of cabinet doors and drawer fronts arrives. These are then installed and adjusted. Quartz countertops remain protected by cardboard until the coach arrives at Final Fit and Finish.

/articlepics/74_CS45A_build_image-96.jpg

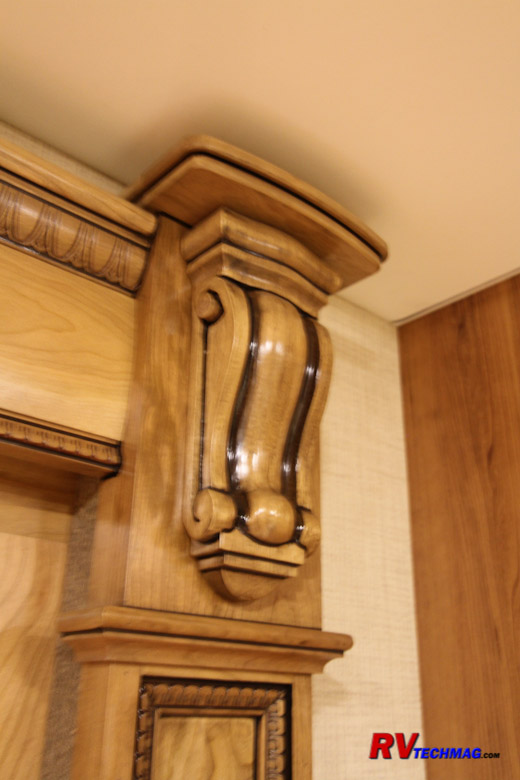

Fine Amish craftsmanship is evident in the millwork throughout the coach, as this trim piece shows.

/articlepics/74_CS45A_build_image-97.jpg

/articlepics/74_CS45A_build_image-98.jpg

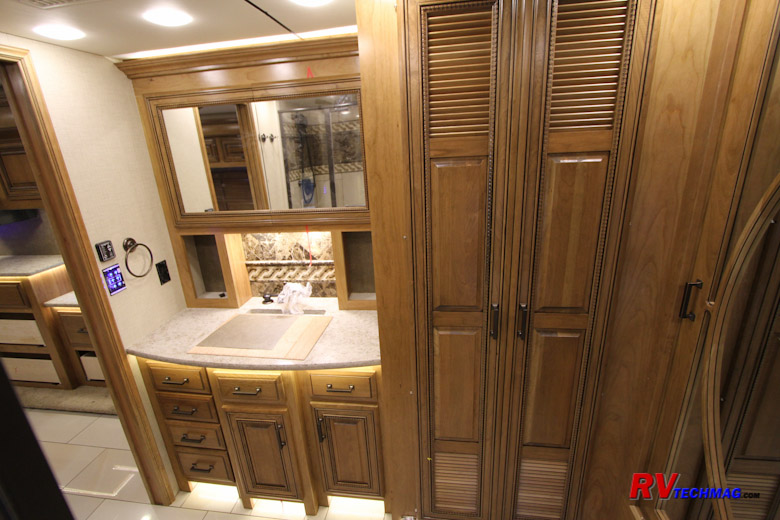

The Tempurpedic Cloud mattress is brought into the coach and the rear bath laundry center is finished off.
